IT TAKES
Bryant® Heat Pumps to Efficiently Heat and Cool Your Home
The Evolution® Extreme and V heat pumps are in a class of their own.
When it comes to high-performance products, Bryant® heat pumps stand out from the rest. The unparalleled Evolution® Extreme and Evolution V heat pumps are backed by efficient, variable-speed technology with benefits suited to meet your home comfort needs.
Heat Pump FYIs
Here is some straighforward information to help you decide which Bryant heat pump solution is right for your home and budget.
What Does SEER Rating Mean?
SEER, Seasonal Energy Efficient Ratio, is “The total heat removed from the conditioned space during the annual cooling season, expressed in BTUs, divided by the total electrical energy consumed by the air conditioner or heat pump during the same season, expressed in watt-hours,” according to the Air-Conditioning Heating and Refrigeration Institute. Basically it’s the heat removed compared to the energy used in the warm months, a measure of the efficiency of a cooling system. The higher the SEER rating the better the system.
What Does HSPF Rating Mean?
HSPF, or Heating Seasonal Performance Factor, is the ratio of BTU heat output and the watt-hours of electricity used over the heating season. BTU is a measurement of energy efficiency of an appliance: how much heat is required to raise the temperature of one pound of water one degree Fahrenheit. So an HSPF rating compares how much heat a heater produces to how much energy it uses.The higher the percentage the more efficient the product. HSPF can range from 6.8 to 10. The lowest HSPF rating for a heating pump to be considered ENERGY STAR rated is 8.2 for single package units and 8.5 for split systems.
Different Compressor Types
What’s the difference between single, two-stage and variable speed compressors? Single-stage compressors have one output speed – high. Two-stage compressors operate most often at about 65% of total capacity, but full capacity during extreme temps. A variable-speed compressor has a fan motor that can move at different speeds and controls the amount of air dispersed in a home. A single-stage unit may offer the lowest initial investment, but it can cause high monthly energy bills. A two-stage unit is quieter and more efficient, while variable speed units are the most intelligent on the market and can save you big on energy costs over their lifetime.
HEAT PUMPS

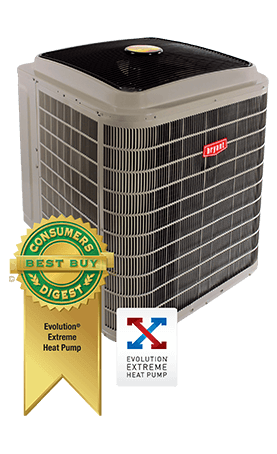

Evolution® Series Heat Pumps
Bryant® Evolution® Series heat pumps offer our highest quality efficiency and performance available. From the 2014 ENERGY STAR® Most Efficient Model, the Evolution®Extreme, to the variable-speed and 1- and 2-stage units, you can count on SEER ratings of at least 19 and the option of total control with an Evolution® Connex® control.
Model |
SEER Rating |
HSPF Rating |
Compressor Type |
| 280A | up to 20.5 | up to 13 | Variable-Speed |
| 289B | up to 19 | up to 10 | Two-Stage |
| 288BNV | up to 18 | up to 11 | Variable-Speed |
| 286B | up to 17.5 | up to 9.5 | Two-Stage |
| 286BNC | up to 17.5 | up to 9.5 | Two-Stage |
| 285B | up to 16 | 8.5 | Single-Stage |
| 285BNH | up to 15.5 | up to 9.5 | Single-Stage |
Preferred™ Series Heat Pumps
Preferred™ Series Heat Pumps deliver all-season flexibility for total home comfort, with up to 17.5 SEER ratings. Enjoy heating and cooling energy savings year-round. Available in a 1- and 2-stage unit or compact unit, the Preferred™ Series of heat pumps can take care of your comfort needs.
Model |
SEER Rating |
HSPF Rating |
Compressor Type |
| 226A | up to 17.5 | up to 9.5 | Two-Stage |
| 225B | up to 16 | up to 9 | Single-Stage |
| 224ANS | 14 | 8.5 | Single-Stage |
| 223A | 13 | 7.7 | Single-Stage |
| 538B | 13 | 7.7 | Single-Stage |
Legacy™ Line Heat Pumps
The Legacy™ Line heat pumps are an affordable solution to your whole-home, year-round comfort needs. Operating efficiently both in summer and winter, the Legacy Line heat pump is a great option for value heating and cooling year after year.
Model |
SEER Rating |
HSPF Rating |
Compressor Type |
| 215B | 15 | 8.5 | Single-Stage |
| 214D | 14 | 8.2 | Single-Stage |
| 214DNC | 14 | 8.2 | Single-Stage |
| 213C | 13 | 7.7 | Single-Stage |
